Water Mist
Characteristics:
- Stainless steel cylinders welded with TIG system (Tungsten Inert Gas).
- 100% Hydrostatically tested.
- Unique surface treatment. Semi matt polished extinguisher.
- Forged brass valve with pressure gauge.
- Synthetic dielectric rubber hose of great maneuverability. The nozzle produces a very thin spray that increases the cooling power. It doesn´t produce thermic neither electric shock. Testing in concordance to IRAM 3544 standards at a tension of 100kv.
- Ventouri type nozzzle.
- Compressed air pressurization.
- Easy to use compact equipment. Simple maintenance.
- Extinguishing agent: Tri-
destilled and deionized water. It doesn´t affect the ozone layer and neither contributes to global warming.

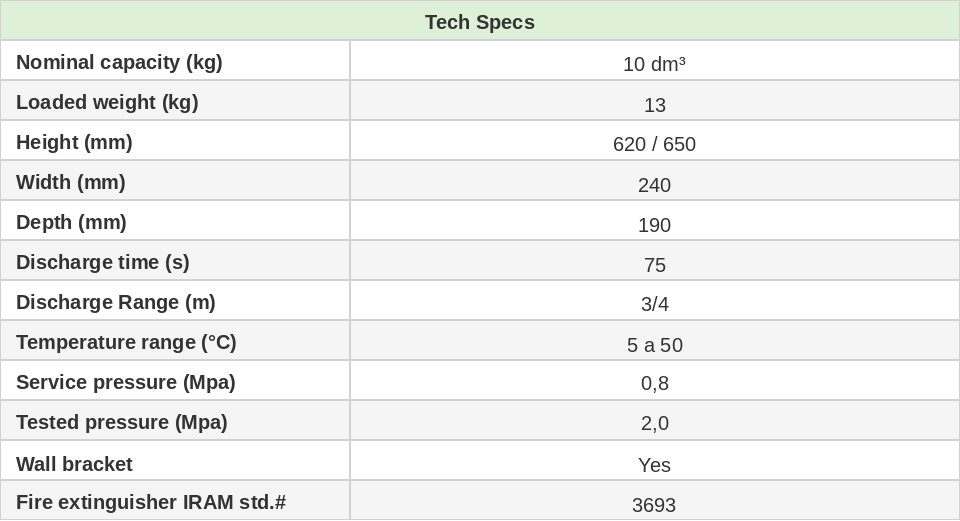

| Tech Specs | |
| Nominal capacity (kg) | 10 dm3 |
| Loaded weight (kg) | 13 |
| Height (mm) | 620 / 650 |
| Width (mm) | 240 |
| Depth (mm) | 190 |
| Discharge time (s) | 75 |
| Discharge Range (m) | 3/4 |
| Temperature range (°C) | 5 a 50 |
| Service pressure (Mpa) | 0,8 |
| Tested pressure (Mpa) | 2,0 |
| Fire extinguisher IRAM std.# | 3693 |
