CO2 Carbondioxide
Characteristics:
- Steel cylinder without sew.
- 100% Hydrostatically tested.
- Surface treatment. Painted with vitric painting.
- Forged brass valve with different auctioning systems (
robinet, trigger and lever). Safety device. - Synthetic dielectric rubber hose with steel mesh. Dielectric nozzle.

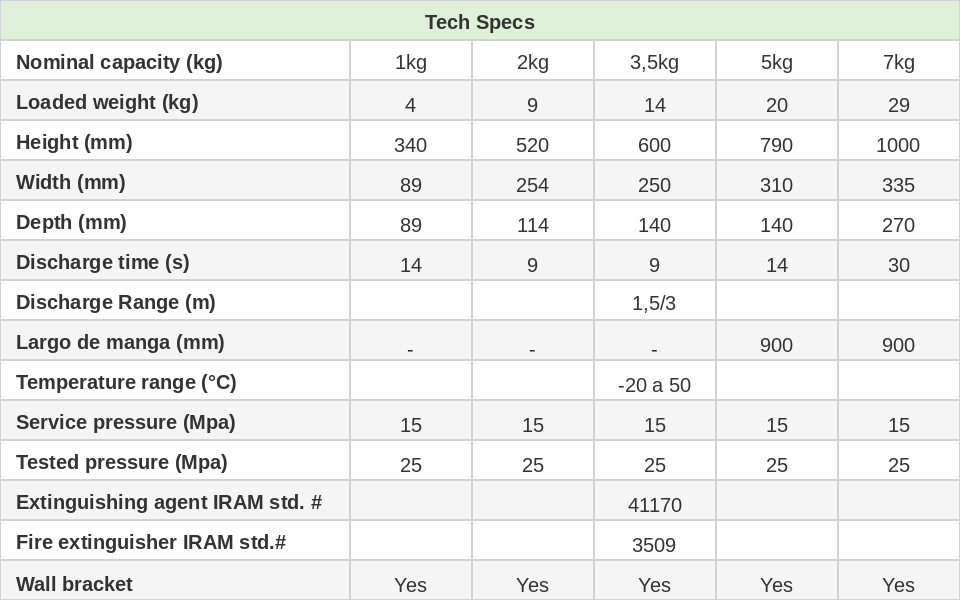

| Tech Specs | |||||
| Nominal capacity (kg) | 1kg | 2kg | 3,5kg | 5kg | 7kg |
| Loaded weight (kg) | 4 | 9 | 14 | 20 | 29 |
| Height (mm) | 340 | 520 | 600 | 790 | 1000 |
| Width (mm) | 89 | 254 | 250 | 310 | 335 |
| Depth (mm) | 89 | 114 | 140 | 140 | 270 |
| Discharge time (s) | 14 | 9 | 9 | 14 | 30 |
| Discharge Range (m) | 1,5/3 | ||||
| Largo de manga (mm) | - | - | - | 900 | 900 |
| Temperature range (°C) | -20 a 50 | ||||
| Service pressure (Mpa) | 15 | 15 | 15 | 15 | 15 |
| Tested pressure (Mpa) | 25 | 25 | 25 | 25 | 25 |
| Extinguishing agent IRAM std. # | 41170 | ||||
| Fire extinguisher IRAM std.# | 3509 | ||||
| Extinguishing rating | Consult | 2B - C | 3B - C | 5B - C | 5B - C |
