ABC Dry Chemical Powders
Characteristics:
- Steel cylinders welded with MIG system (Metal Inert Gas).
- 100% Hydrostatically tested
- Unique surface treatment, highly resistant to corrosion: mechanical pickled, phosphatized passivated and painted with powder polyester paint.
- Forged brass valve with pressure gauge.
- Synthetic rubber hose of great maneuverability.
- Nitrogen gas pressurization
- Easy to use compact equipment. Simple maintenance.

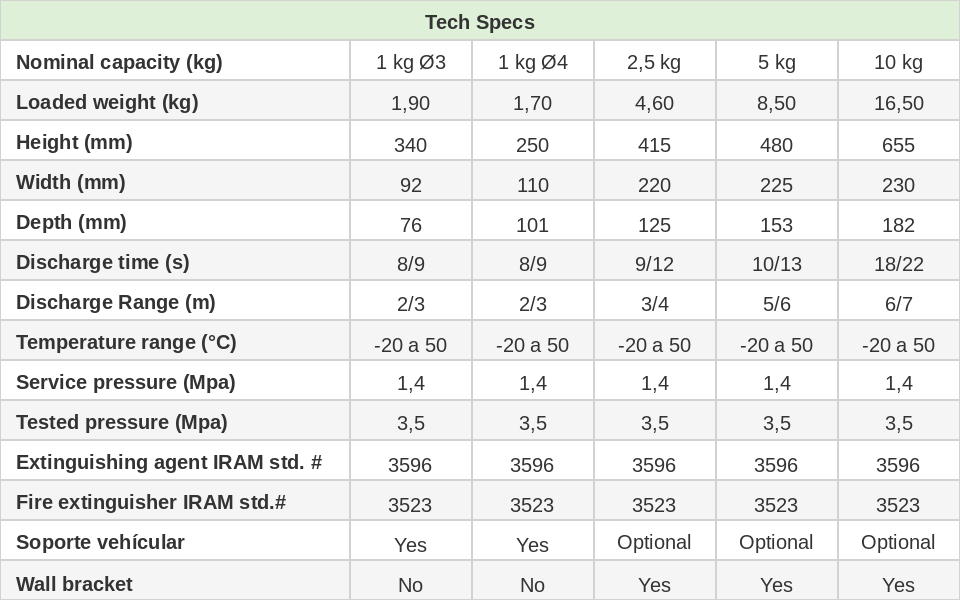

| Tech Specs | |||||||
| Nominal capacity (kg) | 1 kg Ø3 | 1 kg Ø4 | 2,5 kg | 5 kg | 10 kg | ||
| Loaded weight (kg) | 1,90 | 1,70 | 4,60 | 8,50 | 16,50 | ||
| Height (mm) | 340 | 250 | 415 | 480 | 655 | ||
| Width (mm) | 92 | 110 | 220 | 225 | 230 | ||
| Depth (mm) | 76 | 101 | 125 | 153 | 182 | ||
| Discharge time (s) | 8/9 | 8/9 | 9/12 | 10/13 | 18/22 | ||
| Discharge Range (m) | 2/3 | 2/3 | 3/4 | 5/6 | 6/7 | ||
| Temperature range (°C) | -20 a 50 | -20 a 50 | -20 a 50 | -20 a 50 | -20 a 50 | ||
| Service pressure (Mpa) | 1,4 | 1,4 | 1,4 | 1,4 | 1,4 | ||
| Tested pressure (Mpa) | 3,5 | 3,5 | 3,5 | 3,5 | 3,5 | ||
| Extinguishing agent IRAM std. # | 3596 | 3596 | 3596 | 3596 | 3596 | ||
| Fire extinguisher IRAM std.# | 3523 | 3523 | 3523 | 3523 | 3523 | ||
| Extinguishing rating ABC 60 | 1A-3B-C | 1A–3B-C | 3A–20B–C | 6A–40B-C | 6A–60B-C | ||
| Extinguishing rating ABC 90 | Consult | Consult | 3A–20B–C | 10A–40B-C | 10A–60B-C | ||
